About this item

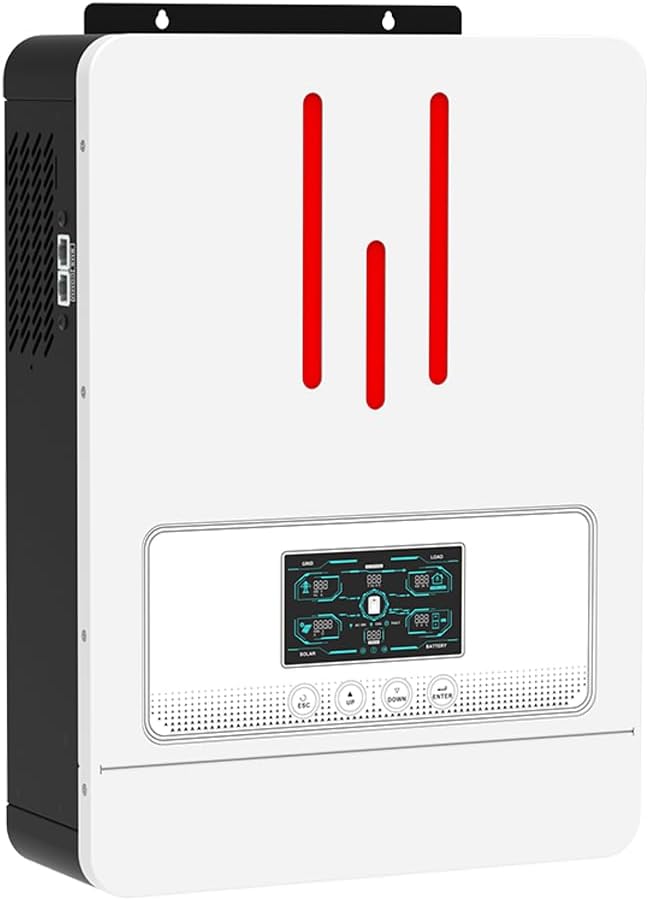

• 【Pure sine Wave Inverter】3200W Pure sine Wave Inverter 24V DC to AC 220/230/240V (Single phase/A Hot Leg 230V Output, Can't Output 110V AC), built in 80A Mppt charge controller, is a new all-in-one hybrid solar inverter charger, fit for 24V Lead-Acid (Seal, AGM,Gel, Flooded) and Lithium battery
• 【TECHNICAL SPECIFICATIONS】3200VA Hybrid Solar Inverter Max.PV Input Power: 3000W, Voltage range: 55-450Vdc, Max. PV Input VOC: 450V DC, Starting voltage >60V;Recommended PV cable size: 16AWG, Max.charge current: 80A.Nominal Input Frequency: 50/60Hz; Output Power: 3000W, surge Capacity: 6000W.

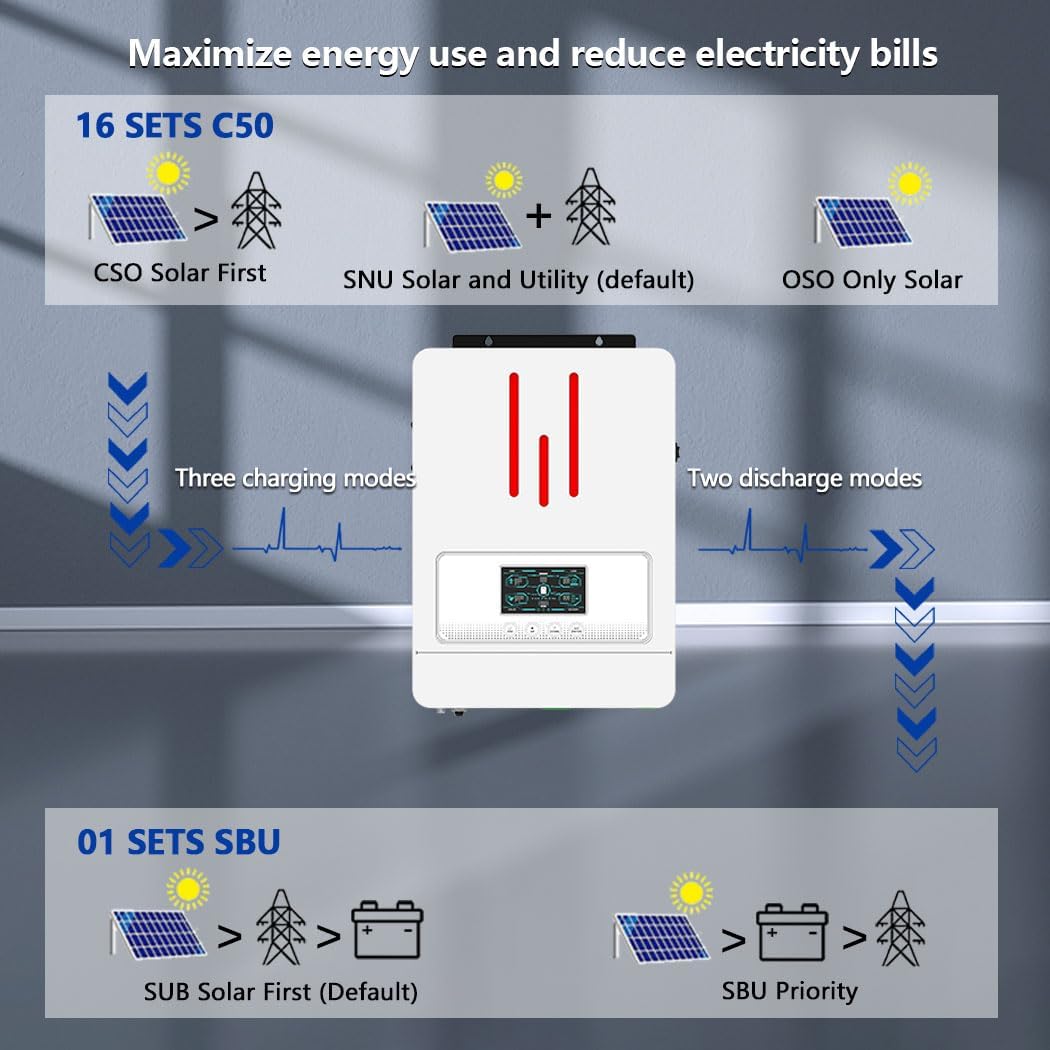

• 【MULTIPLE CHARGING MODES】Off Grid Solar Inverter have 3 charging modes are optional, i.e. Only Solar, Solar Frist and Mains & Solar hybrid charging;and 2 output modes are available, i.e. Solar Frist and SBU Priority, uninterrupted power supply to meet different application requirements. And compatible to mains voltage or generator power, Auto restart while AC is recovering.
• 【Reduced Initial Investment Cost】Battery-less startup design significantly reduces system purchase cost. Battery installation, maintenance and replacement costs are eliminated. Direct utilization of photovoltaic power, suitable for daytime high energy consumption scenarios, especially in areas where solar energy resources are abundant and demand for electricity is concentrated in the daytime (it is recommended to match the grid input, which automatically switches to utility power to supplement when there is insufficient photovoltaic power generation)
• 【BMS】The inverter can access key battery information (e.g. voltage, current, temperature, SOC, SOH) provided by the BMS. This helps avoid dangerous situations such as overcharging, overdischarging, overcurrent and overheating. When the BMS detects an abnormality (e.g., high battery temperature), it can send a signal to the inverter to trigger the system protection mechanism to quickly stop charging and discharging and prevent the fault from expanding.（BMS only compatible with PYLON/PACE）
